ENGINEERED HARDWOOD FLOORING
ELLIS "ECO-LINE" PRE-FINISHED T&G FLOORING

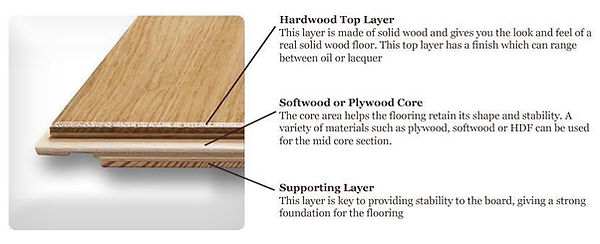

Two-Ply Construction
We are pleased to offer our very high quality 2-Ply Ellis Eco-Line Engineered flooring. ALL our flooring is made in our flooring factory in China, using state-of-the-art German and Italian machinery, and using only German coatings (made by Klumpp and Treffert) and Scandinavian and Japanese glues, conforming to European Union E1 Standards and better – far surpassing OSHA recommended Standards.
The top layer is a made of Solid hardwood 1/8” (3 mm) or 3/16” (4 mm), laminated onto Multi-Ply Baltic Birch Waterproof Plywood, conforming to the same accuracy and high standard of machining as all our other flooring products. All PRE-FINISHED Ellis Engineered Eco-Line Flooring is supplied in a MATTE finish with 25 - 30% Gloss Rate or higher Gloss if required. All Pre-finished Aluminum Oxide coated products carry a 25-Year Limited Warrantee on the wear layer for residential installations. Since Ellis Flooring is a product of nature, there will be slight variations in color.
All Ellis Hardwood Engineered Flooring is available in either Tongue and Groove (T&G) or Patented Click-Lock System profiles.
2 Ply Construction is available with the Top Wear Layer laminated onto a Multiply Plywood or onto an HDF (High-Density Fiberboard) Core.
​
All Ellis Engineered Flooring is also available with a Backer of either EVA/IXPE Foam Rubber, or Cork - to help deaden sound.
​
Engineered Flooring on HDF Core has IXPE or EVA or Cork Backer.
​
HDF core is harder, more stable and more moisture resistant, due to its Janka hardness rating of 1700.
This makes the much HDF core much harder, more durable and less susceptible to moisture than a plywood core.
Three-Ply Construction
Click to enlarge construction image
American Walnut Engineered Flooring
Engineered Oak Flooring - 20/6mm
Washed White Engineered Oak Flooring
-
Item No. SF-9005
-
Length: 2200mm
-
Width: 300mm
-
Thickness: 21/6mm
-
Lock System: T&G
-
Finish: UV Coating, Oiled
-
Construction: Multi-ply
-
Installation: Nail down, Glue down
-
Warranty: 25 years
European White Oak Engineered Hardwood Flooring
ABCD Grade Brushed European Oak Parquet Flooring
-
​Item No. SF-EWO06
-
Length: 1200mm
-
Width: 125/127mm
-
Thickness: 12/14/15/18mm
-
Lock System: T&G, Unilin click
-
Finish: UV Coating, Oiled
-
Construction: Multi-ply, 2-ply
-
Installation: Nail down, Glue down
-
Warranty: 25 years
Engineered Oak Flooring 21/6mm Thickness
Golden Engineered Oak Flooring
-
Item No. SF-9011
-
Length: 2200mm
-
Width: 300mm
-
Thickness: 21/6mm
-
Lock System: T&G
-
Finish: UV Coating, Oiled
-
Construction: Multi-ply
-
Installation: Nail down, Glue down
-
Warranty: 25 years

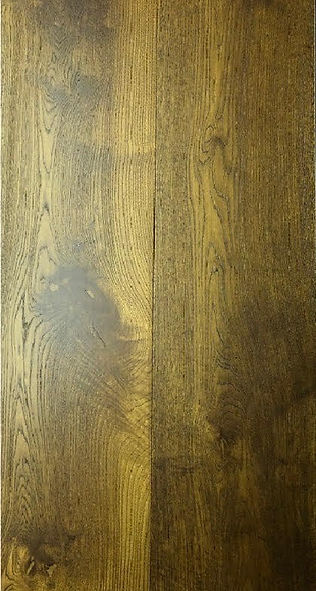

Wide Oak Plank - 300mm width engineered oak flooring
​
When a floor is made from planks that are wide and long, it means that there are less seams in the overall floor, and the less seams there are, the more unified, distinctive, and gorgeous the floor looks. In addition, planks just look more dramatic and beautiful when they are wide and long, with their wide grain patterns flowing uninterrupted from end to end.
Top Veneer Thickness - 8/64",11/64", 13/64", 15/64" (3/4/5/6mm)
Total Thickness - 19/32", 23/32", 28/32",
29/32" (15/18/20/21mm)
Width - 8", 9", 10", 11", 12" (190/220/240/260/300mm)
Length - 72", 75", 84", 88" (1800/1900/2100/2200mm)
Edge - Micro-Bevel
Joint System - T&G
Glossy - 5-10%
Moisture Content - 6-9%
Environmental - F4 Star/EO
Finished Lacquered, Oiled, Unfinished Surface Smooth, Brush Hand Scraped
Warranty - 25 Years Life Time
Structure Installation - Nail down, Glue down
-

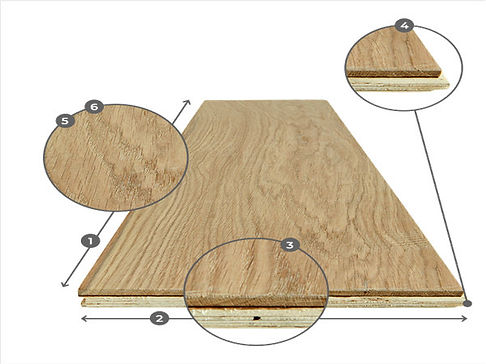

1.2 -2.2M Long Board - Great for use in longer rooms, making the floor look in proportion and adding to a feeling of elegance.
-
Extra-Wide Board - A classic look for grand rooms that's fast to fit thanks to a 300mm width.
-
14-21MM Thick Engineered - A high-quality construction, bringing the look and feel of wood with the strength for load bearing use.
-
Professional Fitting - A T&G fixing method that requires gluing or nailing and recommended for professional installation.
-
Brushed & Oiled - Brushed and textured to enhance the grain and with an oil finish to give maximum natural appeal.
-
Natural Vintage - With a warm, natural tone and a bold, expressive rustic European oak grain, this floor brings a vintage look best for grand rooms.
ELLIS "ECO-LINE" DISTRESSED (HAND-SCRAPED ANTIQUE LOOK)
White Oak (hand-scraped)
4 antique color options
5/8" x 5" (15x125mm 3/16 (4mm) 18" to 4 ft (450-1200mm)
Chinese Maple (hand-scraped)
4 antique color options
5/8" x 5" (15x125mm 3/16 (4mm) 18" to 4 ft (450-1200mm)
Ellis stores and maintains all of our wood products in environmentally controlled warehouses, to ensure delivery of a top quality product with proper moisture levels. Our warehouse location is strategically located to cover shipments to all corners of the USA.
